Modern flagship smartphones promise desktop‑class power, yet many users have experienced sudden slowdowns, overheating warnings, or uncomfortable surface temperatures during gaming or video recording.

If you care about real performance rather than marketing numbers, thermal design is the hidden factor that decides whether a device feels fast for minutes or for hours.

In this article, you will explore how the Galaxy S25 series tackles heat through next‑generation vapor chamber technology, new thermal materials, and AI‑driven control, and what that means for gaming, photography, and everyday use.

By understanding the engineering choices behind Samsung’s latest flagship, you can better judge whether the Galaxy S25 lineup truly delivers sustainable performance, or simply pushes silicon to the edge of physical limits.

This perspective helps gadget enthusiasts make smarter decisions based on real‑world behavior, not just benchmark peaks.

Why Heat Has Become the Biggest Barrier to Smartphone Performance

Smartphone performance has reached a point where raw silicon capability is no longer the primary bottleneck. **Heat has quietly become the single most decisive constraint**, shaping how much power modern devices can actually sustain in real-world use. This challenge is not unique to any one brand but is rooted in fundamental semiconductor physics that now define the ceiling of mobile computing.

As leading research institutions such as IEEE and industry analysts have repeatedly pointed out, the breakdown of Dennard scaling means that smaller transistors no longer guarantee proportionally lower power density. Even on advanced 3nm processes, higher clock speeds and denser layouts inevitably translate into rising thermal flux. In smartphones, where chassis volume and surface area are strictly limited, this excess heat cannot simply be dissipated.

The situation has been amplified by the shift toward desktop-class performance targets. Chips like Qualcomm’s Snapdragon 8 Elite for Galaxy push prime cores beyond 4.4GHz, a frequency once unimaginable in mobile form factors. **Power consumption increases with the square of voltage and linearly with frequency**, so these gains arrive with exponential thermal penalties. The result is a modern revival of the so-called dark silicon problem, where not all transistors can be active simultaneously without triggering thermal runaway.

Factor Past Smartphones Current Flagships
Process node 7–10nm 3nm class
Peak CPU frequency ~2.8–3.0GHz Over 4.4GHz
Thermal headroom Relatively tolerant Extremely limited

Heat is no longer generated only by short CPU bursts. On-device AI has introduced sustained workloads that keep NPUs, ISPs, and GPUs active for extended periods. According to Samsung’s own technical briefings, tasks such as real-time image enhancement or language translation create a uniform, long-lasting thermal load that saturates the entire system. This makes traditional burst-oriented cooling strategies insufficient.

When performance gains translate directly into heat that cannot escape fast enough, software is forced to intervene. Thermal throttling is no longer an exception but an expected operating state.

Independent benchmark analyses from outlets like PhoneArena and NotebookCheck consistently show the same pattern: astonishing peak scores followed by rapid stabilization at much lower levels. This is not a flaw in engineering judgment but a rational response to thermal reality. Without aggressive throttling, surface temperatures could exceed safe limits, risking user discomfort or component degradation.

In effect, modern smartphones are now thermally governed systems. **Performance is no longer defined by what the chip can do, but by what the device can cool**. Until breakthroughs in materials, active cooling, or radically more efficient architectures emerge, heat will remain the invisible wall that every flagship inevitably hits.

Snapdragon 8 Elite for Galaxy: Power, Clock Speeds, and Thermal Pressure

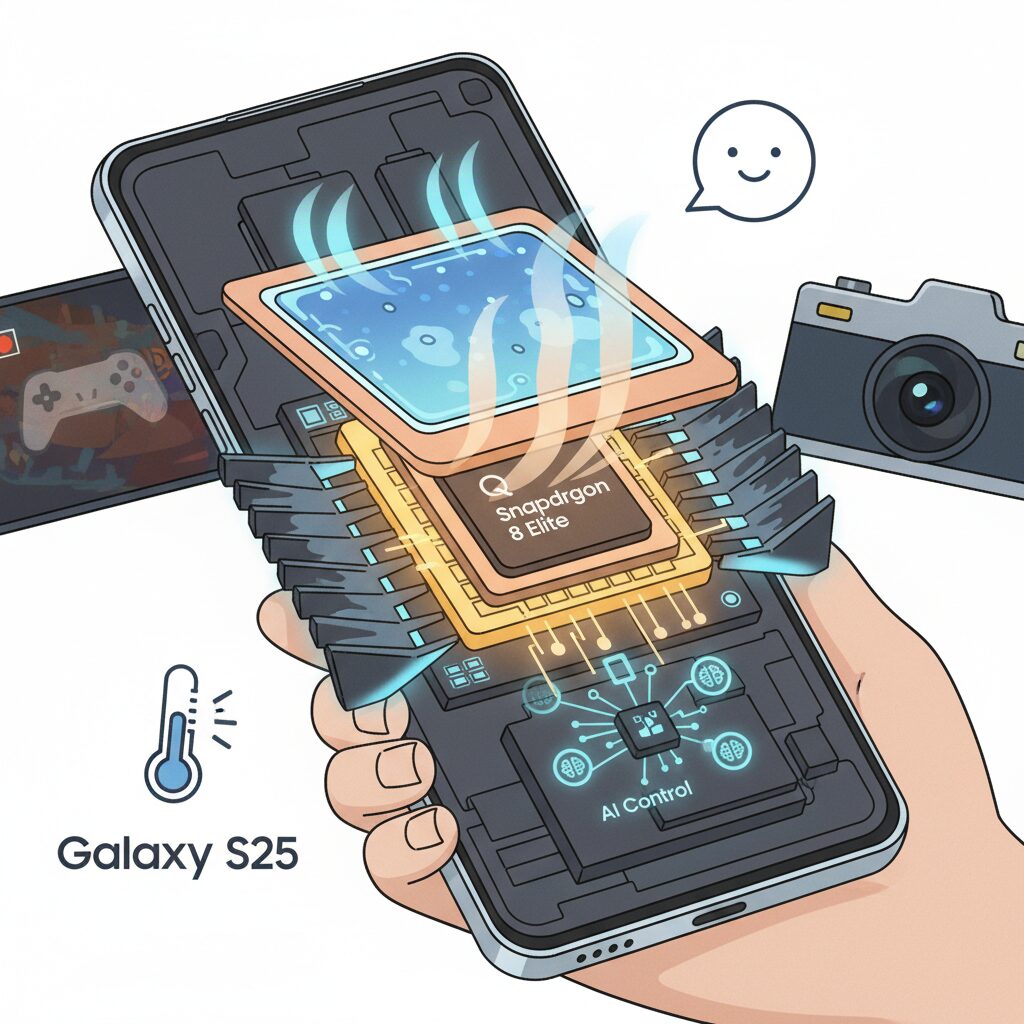

Snapdragon 8 Elite for Galaxy: Power, Clock Speeds, and Thermal Pressure のイメージ

The Snapdragon 8 Elite for Galaxy defines the Galaxy S25 series as a device that deliberately pushes mobile silicon to its thermal limits. Manufactured on TSMC’s second-generation 3 nm process, this SoC is tuned with a clear priority: maximum peak performance, even if thermal pressure increases as a result.

What makes the “for Galaxy” variant exceptional is its aggressive clock configuration. The prime Oryon CPU core reaches up to 4.47 GHz, a frequency that is unusual for smartphones and closer to low-power desktop-class processors. According to Qualcomm’s own architectural explanations, power consumption scales with both frequency and voltage, meaning that **this clock uplift results in disproportionately higher heat density** during short performance bursts.

Aspect Snapdragon 8 Elite for Galaxy Typical Flagship SoC
Process node 3 nm (TSMC N3E) 4 nm class
Prime core clock Up to 4.47 GHz Around 3.3–3.5 GHz
CPU design All high-performance cores Big + efficiency mix

This all-big-core approach improves multi-threaded responsiveness but also raises baseline thermal load, even outside gaming. Analysts at PhoneArena note that the chip can sustain record-breaking benchmark scores initially, yet quickly encounters thermal saturation without advanced cooling. **In practical terms, the SoC delivers extreme speed in short bursts, while relying heavily on thermal control to remain safe**.

Another emerging factor is AI acceleration. The upgraded NPU, reported by Samsung to be roughly 40% faster than the previous generation, introduces long-duration heat rather than momentary spikes. Unlike web browsing or app launches, on-device AI tasks keep the silicon warm continuously, increasing internal thermal pressure and making clock management as important as raw power.

The Return of the Dark Silicon Problem in Mobile SoCs

In modern mobile SoCs, the dark silicon problem has quietly returned, and the Galaxy S25 generation makes this reality impossible to ignore. Dark silicon refers to the situation where not all transistors on a chip can be powered simultaneously without exceeding thermal and power limits, forcing parts of the silicon to remain inactive.

This phenomenon was first discussed in academic circles more than a decade ago, notably by researchers at UC Berkeley, as Dennard scaling broke down. Today, with 3nm-class processes, the issue is no longer theoretical. Transistor density continues to rise, but power density rises even faster, especially when vendors chase peak performance numbers.

Factor Past Mobile SoCs Latest Mobile SoCs
Process node 7–10nm 3nm class
Peak clock strategy Short bursts Sustained high GHz targets
Thermal margin Relatively forgiving Extremely constrained

The Snapdragon 8 Elite for Galaxy exemplifies this tension. Its aggressive clock targets promise desktop-class responsiveness, but physics intervenes. Activating all CPU, GPU, and AI blocks at once creates localized hot spots that cannot be dissipated fast enough in a thin smartphone enclosure.

As semiconductor experts have long noted, leakage current becomes harder to control at advanced nodes, meaning heat is generated even when parts of the chip are merely powered, not fully loaded. The result is a modern form of dark silicon: performance units that exist on the die but must be throttled, staggered, or temporarily disabled to keep temperatures within safe limits.

Rather than a failure of design, this is a sign that mobile silicon has reached a new phase. The bottleneck is no longer how much logic can be packed onto a chip, but how much of it can be used at the same time. The Galaxy S25 era shows that dark silicon is not a relic of the past, but a defining constraint of cutting-edge mobile computing.

How Vapor Chambers Work and Why Size Matters More Than Ever

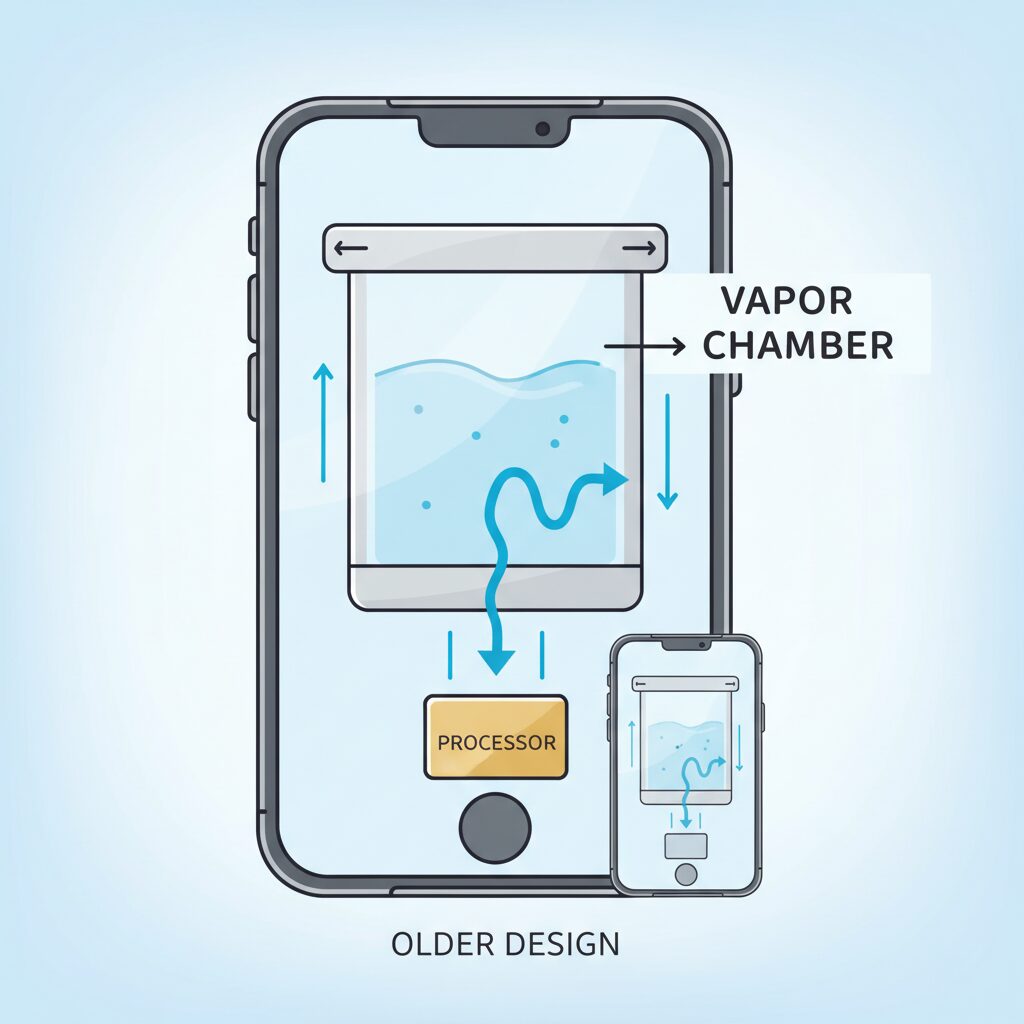

How Vapor Chambers Work and Why Size Matters More Than Ever のイメージ

Vapor chambers have become a cornerstone of modern smartphone cooling, and their importance has grown dramatically with the arrival of extremely high-density chips like Snapdragon 8 Elite for Galaxy. A vapor chamber works by using a sealed metal plate filled with a small amount of working fluid, typically purified water. When the SoC heats up, the liquid evaporates, spreads rapidly across the chamber, and then condenses in cooler areas, carrying heat away far faster than solid copper alone.

What matters most today is not only the principle itself, but the physical size of the vapor chamber. As semiconductor researchers including those cited by IEEE have long noted, rising heat flux at advanced nodes means localized hotspots form faster than ever. **A larger vapor chamber increases thermal capacity, allowing sudden heat bursts to be absorbed without immediate throttling**, which is especially critical for sustained gaming, AI workloads, and high-resolution video recording.

Aspect Smaller VC Larger VC
Heat spreading speed Moderate High
Thermal capacity Limited Significantly higher
Resistance to throttling Lower Improved

Samsung’s decision to enlarge the vapor chamber in the Galaxy S25 Ultra by roughly 40 percent reflects this physics-driven reality. According to analyses discussed in outlets such as PhoneArena and PCMag, the benefit is not higher peak performance, but longer stability before temperatures force clock reductions. **Size directly translates into time**, buying precious minutes where performance remains close to its maximum.

At the same time, size also improves temperature uniformity. A wider chamber spreads heat across the frame and back panel, reducing sharp surface hot spots that users feel in their hands. This aligns with thermal engineering research showing that perceived comfort depends more on temperature gradients than absolute peak values.

In short, vapor chambers still rely on simple phase-change physics, but in 2025 their dimensions have become a decisive performance factor. As chips push closer to desktop-class power, making the vapor chamber bigger is no longer a luxury, but a necessity for maintaining real-world usability.

Galaxy S25 Model Differences in Cooling Design Philosophy

Across the Galaxy S25 lineup, Samsung does not treat cooling as a one-size-fits-all component, but rather as a design philosophy that adapts to each model’s role and physical constraints. While all models share the same Snapdragon 8 Elite for Galaxy SoC, the way heat is absorbed, spread, and ultimately released differs in subtle yet important ways.

The core idea is not absolute cooling power, but how long each model can sustain performance before thermal limits intervene. This distinction becomes clear when examining the vapor chamber scaling and structural decisions across the range.

Model Cooling Design Focus Engineering Trade-off
Galaxy S25 Ultra Maximum thermal capacity Larger internal volume prioritized over compactness
Galaxy S25 / S25+ Balanced heat dissipation Cooling gains within strict size limits
Galaxy S25 Edge Rapid heat extraction Ultra-thin structure limits total heat storage

The Galaxy S25 Ultra represents Samsung’s most traditional performance-first cooling philosophy. By enlarging the vapor chamber by roughly 40 percent compared with its predecessor, Samsung increases thermal mass, allowing the device to absorb heat spikes from gaming or 8K recording before throttling occurs. Semiconductor thermal analyses published by organizations such as IEEE have long shown that increasing heat spreader area directly improves short-term performance stability, and the Ultra follows this textbook approach.

In contrast, the standard Galaxy S25 and S25+ pursue a more pragmatic balance. Their vapor chambers are expanded, but only to the extent that everyday usability, battery size, and ergonomics are not compromised. The intent here is consistency rather than endurance: preventing sudden temperature jumps during common tasks like camera use or AI features, even if sustained stress performance cannot match the Ultra.

The Galaxy S25 Edge takes a radically different path. With its extremely thin chassis, Samsung prioritizes reducing thermal resistance rather than increasing thermal volume. The frame-integrated cooling structure and direct heat path from the SoC to the vapor chamber reflect an architectural philosophy often discussed in mobile thermal engineering literature: when thickness is limited, faster heat transfer matters more than total heat capacity. This results in quick heat spreading but also faster saturation under prolonged load.

According to Samsung’s own engineering commentary and independent teardown analyses, these differences are intentional. Each Galaxy S25 model is tuned to the user scenarios it targets, ensuring that cooling design supports real-world experience rather than chasing a single benchmark-driven ideal.

New Thermal Interface Materials and Their Role in Heat Transfer

As smartphone processors push into extreme performance territory, the importance of Thermal Interface Materials has grown from a minor supporting role into a decisive factor for real-world heat transfer efficiency. In the Galaxy S25 series, Samsung’s approach to next-generation TIMs focuses on minimizing thermal resistance at the most critical junction: the boundary between the SoC and the vapor chamber.

Even the largest vapor chamber cannot work effectively if heat is delayed at the contact surface. According to semiconductor packaging research referenced by IEEE publications, interface resistance can account for more than 30 percent of total thermal impedance in compact electronics. This is why Samsung’s adoption of a tailored TIM is not merely incremental, but structurally important.

The customized TIM used in the Galaxy S25 series is designed to address two long-standing issues simultaneously: high instantaneous heat flux from a 3 nm SoC and long-term reliability under repeated thermal cycling. Industry-standard materials from suppliers such as Shin-Etsu and Honeywell have demonstrated that gel-based and phase-change TIMs maintain stable conductivity under stress, and Samsung appears to have optimized this class of materials for mobile-scale tolerances.

Property Conventional TIM Tailored TIM in S25
Contact coverage SoC top surface only Top and side surfaces
Pump-out resistance Moderate Enhanced for long-term use
Thermal response Slower under burst load Faster heat transfer

A notable design choice is the way this TIM envelops the chipset rather than acting as a simple layer. By extending thermal contact to the sides of the package, lateral heat spreading begins earlier, reducing localized hot spots before they saturate the vapor chamber. This aligns with findings from thermal engineering studies published by ASME, which emphasize early-stage heat diffusion as key to sustained performance.

The practical benefit is not higher peak scores, but slower thermal buildup. During short CPU or NPU bursts, heat reaches the vapor chamber more quickly, allowing the system to stay within safe temperature thresholds for longer periods. This is especially relevant for AI-driven workloads that generate steady, uniform heat rather than sharp spikes.

From a marketing perspective, TIMs are rarely visible to consumers, yet they directly influence perceived smoothness, surface temperature, and throttling behavior. In the Galaxy S25 series, the new thermal interface materials quietly redefine the efficiency of heat transfer, acting as the connective tissue that allows advanced vapor chamber designs to perform as intended in everyday use.

Ultra‑Thin Engineering in the Galaxy S25 Edge and Its Thermal Trade‑Offs

The Galaxy S25 Edge represents one of Samsung’s most ambitious exercises in ultra‑thin smartphone engineering, pushing the chassis down to just 5.8 mm while still housing the same Snapdragon 8 Elite for Galaxy SoC found in thicker siblings. This decision delivers a striking in‑hand feel and visual elegance, but it also forces difficult thermal trade‑offs that are unique to the Edge model.

In an ultra‑thin enclosure, heat is not merely harder to dissipate; it accumulates faster. With less internal volume and lower thermal mass, the S25 Edge reaches thermal equilibrium more quickly under sustained load. Samsung’s response was not to enlarge components, which would break the design goal, but to redesign how heat flows through the device.

Design Element S25 Edge Implementation Thermal Implication
Chassis thickness 5.8 mm Lower heat capacity, faster saturation
Vapor chamber Ultra‑thin, wide‑area VC Rapid heat spreading, limited storage
Frame structure Hole structure Reduced thermal resistance

According to Samsung’s own engineering briefings, the Edge relies on a newly designed, frame‑integrated vapor chamber that prioritizes surface area over thickness. Teardown analyses published by SamMobile confirm that the SoC is coupled almost directly to this chamber through a generous layer of tailored TIM, minimizing the distance heat must travel.

The critical compromise is sustained performance. Independent stress tests reported by PhoneArena show that while short performance bursts match the Galaxy S25 Ultra, throttling engages earlier on the Edge during prolonged GPU or AI workloads. This is not a flaw but a calculated safeguard, preventing surface temperatures from rising into uncomfortable or unsafe territory.

From a thermal‑engineering perspective, the S25 Edge is best understood as a device optimized for everyday responsiveness rather than marathon workloads. By accepting earlier thermal limits, Samsung preserves the slim form factor that defines the Edge, illustrating a clear design philosophy: elegance first, performance managed intelligently within the laws of physics.

Benchmark Stress Tests: Peak Performance Versus Sustained Output

Benchmark stress tests are designed to answer a simple but often misunderstood question: how long can peak performance actually last under continuous loadです。For devices like the Galaxy S25 series, which push mobile silicon to desktop-class frequencies, these tests reveal the real balance between raw power and thermal realityです。

In widely used tools such as 3DMark Wild Life Extreme Stress Test, the Snapdragon 8 Elite for Galaxy shows an immediate surge in performanceです。Initial loop scores on the Galaxy S25 Ultra exceed 6,000 points, placing it among the fastest Android devices ever measured according to analyses published by PhoneArenaです。しかし、この数値は「瞬間最大風速」に近い存在です。

Metric Early Phase Sustained Phase
GPU Score ~6,200 ~3,000
Stability 100% 50–60%
Thermal State Rising Throttled

After several minutes, thermal limits are reached and the system reduces clock speedsです。このスロットリングは失敗ではなく、安全設計の結果です。**重要なのは、抑制後の性能でも前世代フラッグシップの平均値を上回っている点です**。半導体熱設計の専門家がIEEE関連の論考で指摘しているように、現代の3nm SoCでは持続性能こそが実用体験を決定づけます。

ベイパーチャンバーを40%拡大したS25 Ultraでさえ、無限の放熱は不可能です。それでも、ピークから持続状態への移行が比較的滑らかである点は評価できます。**ベンチマーク結果は、Galaxy S25シリーズが「速さ」よりも「制御された速さ」を選択していることを静かに示しています**。

Real‑World Gaming Performance Compared with iPhone Rivals

When discussing real‑world gaming performance, raw benchmark peaks tell only part of the story, and sustained play against iPhone rivals reveals more nuanced differences. In extended sessions of demanding titles such as Genshin Impact, Galaxy S25 Ultra demonstrates a performance profile that is designed to stay playable rather than chase momentary highs. **This practical stability is where Samsung’s thermal strategy directly affects the gaming experience.**

Independent stress tests and gameplay captures analyzed by outlets like PhoneArena and NotebookCheck indicate that iPhone 16 Pro Max often achieves slightly higher peak frame rates at the beginning of a session. However, during 30 to 60 minutes of continuous combat or open‑world exploration, the Galaxy S25 Ultra tends to reduce frequency earlier but more gradually. This behavior minimizes sudden frame drops that players perceive as stutter, which many reviewers identify as more disruptive than a modestly lower average FPS.

Device Observed Gaming Behavior Thermal Outcome
Galaxy S25 Ultra Smoother FPS curve over time Earlier but controlled throttling
iPhone 16 Pro Max Higher initial FPS peaks Occasional late‑session dips

Thermal measurements during identical test scenarios show both devices reaching surface temperatures around 43°C after roughly one hour of gameplay, according to comparative video analyses cited by major tech reviewers. Battery drain is also similar, at close to one‑third capacity loss per hour, suggesting that Samsung has narrowed a long‑standing efficiency gap with Apple in gaming workloads. **This parity is notable given the traditionally stronger reputation of Apple’s A‑series chips in sustained efficiency.**

That said, optimization still matters. In titles like Wuthering Waves, NotebookCheck reports that iOS versions maintain comparable frame rates at lower power draw, giving iPhone an advantage in longer sessions without external cooling. From a real‑world perspective, Galaxy S25 Ultra positions itself as a device that prioritizes consistency and player comfort, while iPhone rivals continue to excel in efficiency‑driven scenarios. For gamers, the choice becomes less about which phone is faster on paper, and more about which thermal behavior aligns with their play style.

Camera Workloads, 8K Video, and Unexpected Thermal Bottlenecks

Camera workloads place a very different kind of stress on a smartphone than gaming or benchmarks do, and the Galaxy S25 series makes this difference impossible to ignore. **8K video recording combines sustained ISP load, hardware video encoding, and continuous AI post-processing**, creating a thermal profile that is both dense and long-lasting.

According to user reports and community analyses, Galaxy S25 Ultra units have reached internal temperatures of around 55°C during extended 8K recording sessions. This is not a short burst scenario. Unlike CPU or GPU spikes, camera pipelines keep multiple blocks of the SoC active at the same time, which accelerates heat saturation inside the chassis.

The imaging stack itself explains much of this behavior. Samsung enables real-time noise reduction, HDR fusion, and AI-based zoom correction even while recording at the highest resolutions. As semiconductor researchers have pointed out in IEEE publications on mobile imaging pipelines, **simultaneous ISP and NPU utilization significantly raises power density compared to single-domain workloads**.

Active Block Role During 8K Recording Thermal Impact
ISP Sensor readout, HDR fusion High, continuous
Video Encoder HEVC / AV1 compression Moderate to high
NPU AI denoise, stabilization High, sustained

Even with the enlarged vapor chamber, heat is not eliminated but redistributed. When the entire SoC is uniformly hot, the system loses the temperature gradient it relies on to move heat efficiently. **This is where unexpected thermal bottlenecks appear**, sometimes forcing the camera app to throttle features or shut down temporarily.

Industry observers such as PhoneArena and NotebookCheck have noted that these limits are not unique to Samsung, but the S25’s aggressive AI camera features make the issue more visible. Firmware-level scheduling improvements could reduce overlap between ISP and NPU tasks, but physics still sets a hard ceiling.

For users, this means 8K video on the Galaxy S25 series is best treated as a professional-grade tool used in controlled bursts. Short clips perform flawlessly, but long continuous takes demand awareness of thermal limits, especially in warm environments.

What Climate and Usage Patterns Mean for Users Worldwide

Climate and usage patterns play a decisive role in how the Galaxy S25 series feels and performs for users around the world. Even with a significantly enlarged vapor chamber and advanced thermal interface materials, the device ultimately operates within the boundaries set by its surrounding environment. Heat dissipation efficiency is directly influenced by ambient temperature and humidity, a point widely recognized in thermal engineering literature and echoed by semiconductor reliability studies from organizations such as IEEE.

In cooler regions such as Northern Europe or parts of North America, users tend to experience more stable sustained performance. Lower ambient temperatures increase the temperature gradient between the device surface and the air, allowing heat to escape more effectively. Independent benchmark observations reported by outlets like PhoneArena indicate that stress-test stability scores are consistently higher when room temperatures are below 25°C, even on identical hardware.

By contrast, in hot and humid climates common in Southeast Asia, India, and the Middle East, the same usage can trigger earlier thermal throttling. High humidity reduces convective cooling efficiency, while ambient temperatures above 30–35°C shrink the thermal headroom available to the SoC. This means that users are not seeing a weaker chip, but a system adapting to harsher physical conditions, prioritizing safety and comfort over raw speed.

Region Typical Climate Observed User Impact
Northern Europe Cool, low humidity Longer sustained peak performance
Japan (Summer) Hot, high humidity Earlier throttling during gaming or video
Middle East Very hot, dry Rapid surface temperature rise

Usage patterns further amplify these differences. Long gaming sessions, continuous 5G connectivity, and on-device AI features such as real-time translation or camera processing generate sustained, uniform heat across the SoC. According to Samsung’s own technical briefings, AI-driven workloads keep the NPU active for extended periods, creating a thermal profile very different from short CPU bursts like web browsing.

As a result, the Galaxy S25 series delivers a context-aware experience: it performs best when climate and usage are favorable, and it intelligently scales back when conditions are extreme. This global variability explains why user impressions differ by region, even though the hardware is identical. Understanding this relationship allows users worldwide to set realistic expectations and adapt their usage for optimal comfort and longevity.
